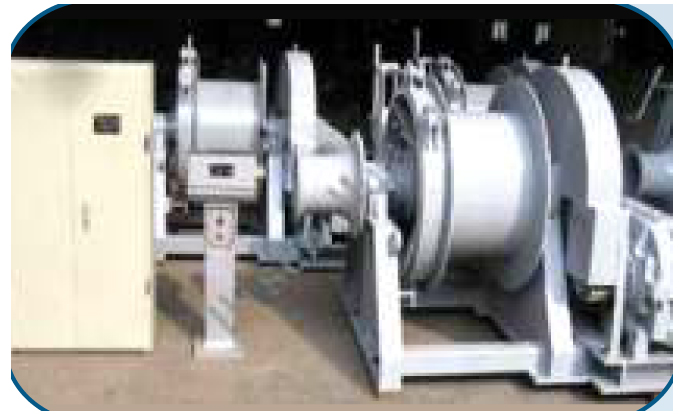

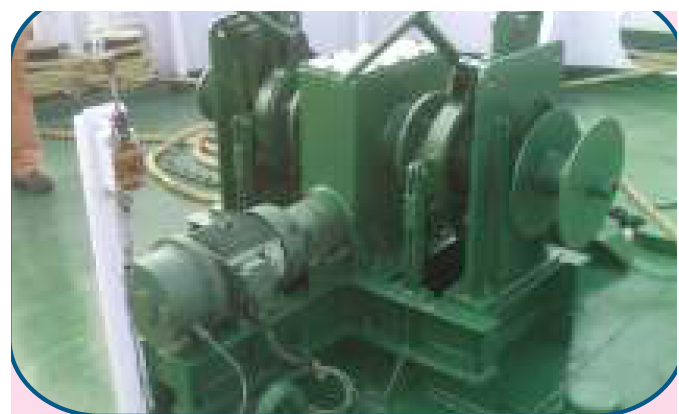

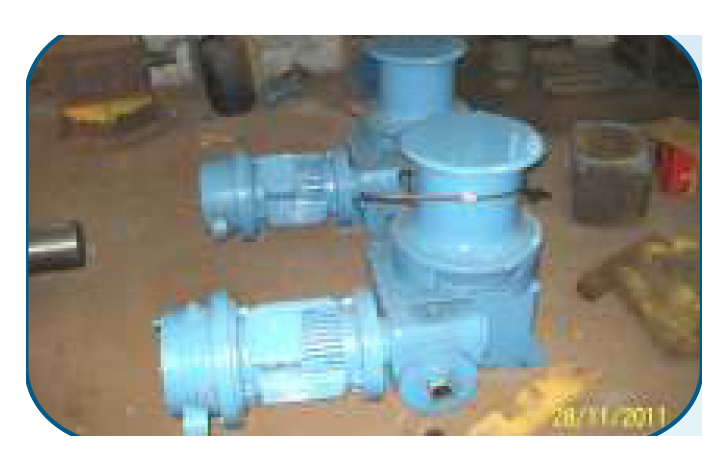

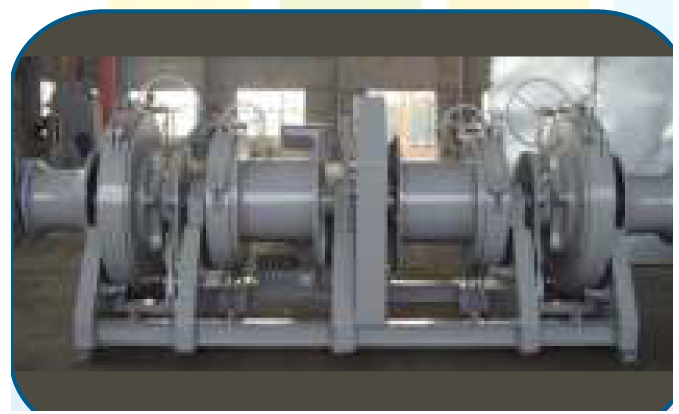

Winches with or without VFD Controls
BEWS broad ranges of winches with user-friendly designs.
A wide range of optional includes - wire spooling, grooved drums, variable winch speed, emergency lowering / release, control system and wire guide system. The equipment can be delivered as separate units/system or integrated in
other total system.
Winches from BEW can be designed to comply with any classification rules and standards.
As winches are equipped with hydraulic and electric motors, all necessary wiring system,
power pack control system are delivered as a complete package.
Air Tugger winches with Planetary and normal gear box for marine and oil field use.
New Design with Helical and Planetary Gears :
Advantages of the helical and Planetary gears over spur gears.
- Silent operation: In a helical gear train, the teeth engage a little at a time rather than the entire face at once. This causes less noisy power transfer in case of helical gears.
- Non-parallel shaft: Helical gears can be used for transferring power between non parallel shafts. Though you have to compromise on efficiency in this case.
- Strength: For same tooth size (module) and equivalent width, helical gears can handle more load than spur gears because the helical gear tooth is effectively larger since it is diagonally positioned.
- Compact design: It requires less deck space for installation.
- Safety Margins: Safety margins are better in Helical & Planetary Gears.
Application:
Mooring, Towing, Anchor Handling, Slipway, Tugger
